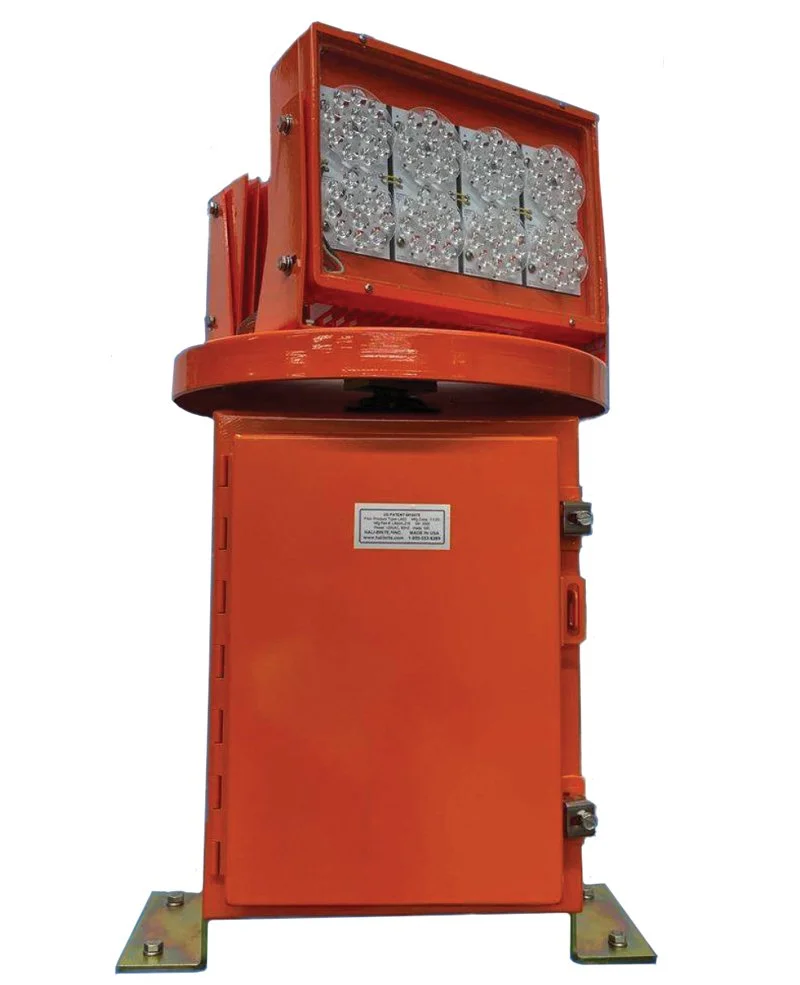

Designed primarily for night operation as identification and location markers for airports.

• 75% Power reduction over traditional metal halide lamps

• Instant on- no more waiting for bulbs to get to full bright!

• FAA Certificate of Conformance: L-802A(L)-High Intensity Airport Beacon (AC 150/5345-12F)

• ICAO: Aerodromes, Annex 14, Volume 1, Eighth Edition. Photometry – Chapter 5, Sec. 5.3.3.6 and 5.3.3.7

• Chromaticity – Appendix 1 Section 2.3.1

• One white LED lamp, One aviation green LED lamp

• 50,000 hour typical lamp life (12 years)

• Patented belt-drive system eliminates the lubrication required by conventional gear-drive beacons (U.S. Pat. 5,339,224)

• 50,000 hour typical lamp life (12 years)

• Lamps preset 5˚ above horizontal, adjustable

• Optional stainless steel cabinet & bearings for highly corrosive environments

• Class I (No Heater) normal operating temperature range: 0°F to +131°F (-18°C to +55°C)

• Class 2 (With Heater) normal operating temperature range: -67°F to +131°F (-55°C to +55°C)

• Heater thermostatically controlled to engage at 0°F

• Optional tell-tale relay (monitors lamps and triggers dry contact on outage)

• Power Consumption L802A(L): Class I; 195W, Class II; 595W

• Manufactured in the USA

• AIP Buy American qualified

Certified to FAA AC 150/5345-51 Compliant with Standards:
FAA: L-802A(L) A/C150/5345-12F Medium Intensity Airport Beacon.
ICAO: Annex 14, Volume 1
